The Audi Custom Steering Wheel Guide: A4 B9 and A6 C8

An Audi steering wheel looks simple from the driver's seat. Under the airbag cover it carries the restraint module, the MMI buttons, the paddles and, on some cars, a heating element.

That is why an Audi custom steering wheel is a fitment project first. The A4 B9 and the A6 C8 share a design language, but they do not share one universal wheel.

Studio view of a custom Audi steering wheel: perforated leather side grips, carbon fiber trim on the spokes and extended aluminium paddle shifters. The airbag cover carries no emblem.

Quick Fitment Summary

Each Audi platform has its own airbag type, plug and button set. Treat these notes as a starting point, then verify against your own car. Current builds are listed on the A4 fitment page and the A6 fitment page.

Audi A4 B9

The B9 generation was introduced in 2016, and the A4L is its long-wheelbase counterpart in China. The flat-bottom rim with aluminium paddles is the common factory layout.

Audi A6 C8

The C8 generation arrived in 2018 with a wider spoke and a heavier rim, and the A6L follows the same theme.

What To Confirm Before Anything Else

Two Audis of the same year can carry different wheels. Platform, market and the option list all change the hardware, so start from your VIN and photos of the wheel you have now.

Why Upgrade Your Audi Steering Wheel

Wear shows up first on a daily-driven Audi. The leather goes glossy at 9 and 3 o'clock, and the flat-bottom edge loses its shape.

A custom rim also changes how the car feels. A thicker section sits better in the hand, and Alcantara holds up better in summer.

Best Audi Custom Steering Wheel Options

Three build directions cover most orders. An A4 wheel and an A6 wheel start from the same core family, so only the skin and the rim shape change.

Carbon Fiber: Gloss, Matte and Forged

Continuous-weave carbon fiber is laid by hand and cured under heat and vacuum. Gloss shows the weave, and matte hides fingerprints. Forged carbon compresses chopped fiber in a mold for the marbled look.

Alcantara

Alcantara has a dry, high-friction surface that holds up in summer heat. It needs brushing and periodic cleaning.

Nappa and Perforated Leather

Nappa leather keeps the cabin close to factory, which suits a daily-driven car. Perforated Nappa breathes better and is the usual choice for a heated rim.

How to Confirm Your Audi Steering Wheel Fitment

Fitment is not decided by the model name alone. The platform, the model year, the trim and the original modules all matter. A B8 airbag does not fit a B9, and a C7 airbag does not fit a C8.

For that reason, every Audi custom steering wheel order starts with verification. We also check airbag compatibility from the module type, the airbag shape and the connector. Have these details ready before you order:

• VIN - confirms the platform, the market and the model year.
• Platform - A4 B9, A4L, A6 C8, A6L or an earlier generation.
• Photos of your current wheel, front and back, with the airbag connector.
• Trim - S line, S model or standard, and whether the rim is flat-bottom.
• Heating - is the original rim heated?
• Paddles - are the extended aluminium paddles fitted?
• Driver assistance - does the car have active lane assist or a hands-on detection system?
• Drive side - left-hand or right-hand drive.

With those details we confirm the core, the airbag type and the functions to keep. Send your VIN and photos through our inquiry form or the contact page before you order.

Factory Functions You Can Retain

A custom build keeps the parts that already work. The restraint module, the wheel controls and the factory wiring channels stay in the car wherever they were specified.

A rim cannot add a function the car was not built with. A car without factory heating or paddles will not gain them from a new rim.

OEM Donor Core vs Aftermarket Replacement

An OEM replacement core and a generic aftermarket frame can look alike. Three details separate them: the spline interface, the module mounting points and the core material.

We build on an original OEM donor core for your chassis. Its spline interface is designed to preserve factory steering-column engagement when the correct core and service procedures are used.

A generic frame may not carry the same mounting bosses, thread inserts or column seating.

Load path through the column
----------------------------
  rim load --> spoke root --> center hub --> spline --> steering column
                                     |
                                     +--> restraint module (fixed position)

Custom Materials

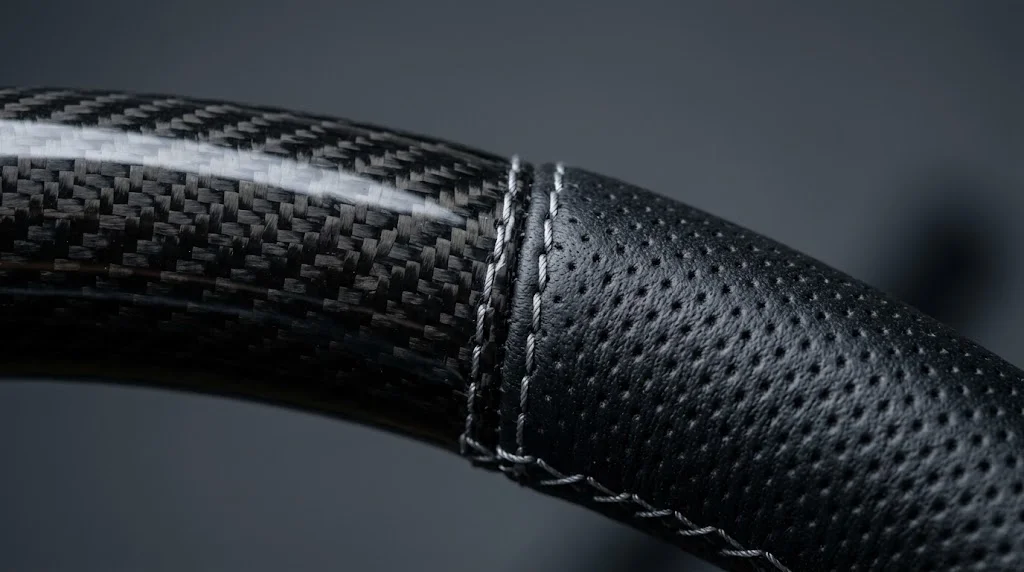

Close-up of a typical material mix: perforated leather on the grips, carbon fiber weave on the spokes and light contrast stitching. Stitch color and leather grade are chosen per order.

Material changes grip, care and appearance, not how the core mounts. A carbon fiber steering wheel can use Alcantara grips, Nappa bolsters or perforated leather. All of them can be built as a custom Audi steering wheel on the same core.

Flat-Bottom vs Round

A flat-bottom rim is the Audi signature, and it adds leg room on a low seat. A round rim keeps the classic silhouette, which suits a daily driver.

Both shapes can be built on the same donor core, and the restraint module stays in its original position and angle.

Installation and Safety

Steering-column work sits inside the Supplemental Restraint System (SRS). The restraint module has a fixed position and angle relative to the driver.

Battery isolation, careful handling and the fastening sequence from the manufacturer's workshop manual (ELSA / ODIS) all matter. A certified automotive technician should carry out the fitting, following authorized workshop manual procedures. We do not quote torque figures, because they differ by chassis and fastener.

After fitting, check the horn, the MMI buttons, the paddles, the heating and the instrument cluster. Report any existing warning light before the build, not after. Our installation guide covers the general sequence.

Coding: When It May or May Not Be Required

Coding is the question buyers ask most, and the honest answer is conditional. When the original steering wheel module, the wiring connectors and the vehicle-specific parts are reused, additional coding may not be required. Compatibility should still be confirmed against your car's configuration before installation.

A different module family, or a part the car expects but does not have, may call for a diagnostic session. A qualified technician carries that out with the manufacturer's diagnostic tooling. We will tell you before you order.

Signal flow after the swap
--------------------------
  clock spring --> factory harness --> column module --> CAN / LIN bus
       ^                                                     |
       |                                                     v
  buttons / paddles / heating --- same factory channels --- cluster

Common Compatibility Problems

These issues come up most often when an Audi steering wheel is ordered without verification.

• B8 versus B9 airbag. The two wheels do not share one cover or connector, so a photo of your airbag settles it.
• C7 versus C8 airbag. The same applies to the A6, where the older platform uses a different module.
• Flat-bottom expectations. A car with a round rim can move to flat-bottom, but the paddle and button positions must match the core.
• Heated rim wiring. The element and its circuit are transferred on a heated car. A non-heated car cannot gain heating.
• Hands-on detection. Cars with an assistance system that senses your hands use a sensor layer in the rim.
• Button count by market. US, EU and Chinese A4L or A6L cars can differ in MMI switchgear.
• Right-hand drive cars. Spoke layout, buttons and paddle positions are handed, so state the drive side when you order.

Before You Order: Configuration Checklist

• Platform confirmed from the VIN: A4 B9, A4L, A6 C8, A6L or an earlier generation.
• Model year and market recorded.
• Photos of the current wheel, front and back.
• Trim: S line, S model or standard.
• Factory functions to keep: heating, paddles, MMI buttons, active lane assist.
• Restraint module: original airbag unit reused.
• Material and finish: gloss or forged carbon, Alcantara, Nappa, perforated leather, stitch color.
• Rim shape: flat bottom or round.
• Drive side, plus any existing warning lights.

Frequently Asked Questions

Can I keep my original airbag?

On most builds the original factory restraint module is reused, with non-invasive pin-to-pin alignment. B8 and B9 cars take different covers, so send a photo of your airbag and its connector.

Can I keep my heated steering wheel?

If your original rim is heated, the element and its circuit are retained. A car that left the factory without heating cannot gain it from a new rim.

Can I keep the paddle shifters?

Where the car was ordered with paddles, the factory paddle module is retained, including the extended aluminium paddles. A car with no paddles cannot have them added by swapping the rim.

Can I upgrade to carbon fiber without replacing the electronics?

Yes, in most cases. The composite skin sits on the donor core, and the original modules and connectors are reused.

Can I order a flat-bottom wheel for an A6 C8?

Yes. Flat-bottom and round rims are both built to order for the C8 and the A6L. The restraint module keeps its original position and angle.

Can you build from my original core?

In most cases we supply an original OEM donor core for your chassis. If you would rather send your own core, contact us first so we can check it.

How do I confirm Audi custom steering wheel compatibility before ordering?

Start with your VIN and clear photos of your current wheel, front and back. Add your model year, market, trim and the options to keep. We confirm the core and the airbag type before production begins.

Why Choose NIEVELT

NIEVELT is the brand of Guangzhou Yingjie Technology Co., Ltd. We design and build custom steering wheels in our own factory in Guangzhou, China. Read more on our About page.

• Fitment confirmed before production. We check your VIN, photos and option list, then build to that specification.
• Made to order. Every wheel is hand-built for one car, not pulled from a shelf.
• Factory functions retained. Where your car was specified with them, the original connectors and modules are reused.
• More than 13 years of experience in design, engineering and manufacturing.
• Packed for international transit. Each order goes out in a high-density foam box with multi-layer protection.
• 3-year warranty covering manufacturing defects under normal use.
• Tracked worldwide delivery. Production takes 10-15 business days, transit takes 15-20 business days, and a tracking number is provided once your order ships.

An Audi custom steering wheel is built to order, so price depends on the core, the materials and the options. We confirm the quote before production. Returns follow our published returns policy, and lead times are listed in the shipping policy.

What About the Vehicle Warranty?

An aftermarket steering wheel does not automatically void a vehicle warranty under U.S. federal warranty law, but warranty coverage can still depend on whether the modification caused the specific failure being claimed.
